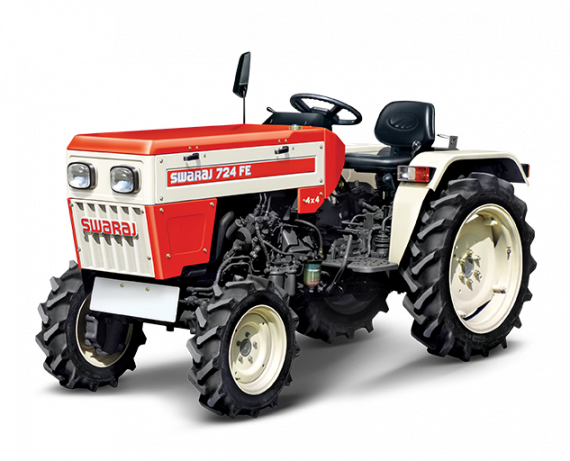

swaraj 724 4WD
swaraj 724 4WD
₹
| Engine | |
| Power: | 18.64 -22.37 kW (25-30 HP) |
| Type | 4 Stroke, Direct injection, Diesel engine. |
| No. of Cylinders | 2 |
| Bore and Stroke | 100 X 116 mm |
| Displacement | 1823 cm3 |
| Engine Torque: | 114 Nm |
| Rated Engine Speed | 1800 r/min. |
| Air Cleaner | Â Dry type , Dual element with dust unloader |
| Cooling System | Water Cooled with No loss tank. |
| Clutch | |
| Clutch: | Â 10″ single diaphragm clutch |
| Gear Speeds | |
| No. of Gears: | Â 8 Forward, 4 Reverse speeds |
| PTO | |
| PTO speed: | 540, 540E |
| Brakes | |
| Brake type: | Oil Immersed multi disc brakes |
| Steering | |
| Steering type: | Balanced Power steering |
| Hydraulics | |
| Hydraulics: | Live Hydraulics with ADDC |
| Lifting Capacity: | 750 kg at lower link ends |
| A) Position control: | Â To hold lower links at any desired height. |
| B) Automatic draft control : | To maintain uniform depth |
| Linkage 3 point linkage suitable for Category | Â I &II type implements pins |
| Isolator Valve for operating remote cylinder & acts as transport lock | |
| Tyre Type | |
| Front Tyre: | 6 x 14 |
| Rear Tyre: | 8.3 x 24 |
| Electricals & Electronics | |
| Electricals: | 12 V, 100 Battery starter motor & alternator |
| Instruments: | Digital instrument cluster |
| Weights & Dimensions | |
| Length | Â 2932 mm |
| Width | Â 1120 mm |
| Height | Â 1480 mm |
| Wheel Base | Â 1762 mm |
| Min. Ground Clearance | Â 260 mm |
| Weight of tractor | Â 1250 kg |
| Wheel track front | Â 955 mm |
| Wheel track rear | Â 880 mm |
| Diesel Tank Capacity | Â 24.5Litre |
| Rear Axle | |
| Bull gear reduction |
